Outdoor Technical Specifications

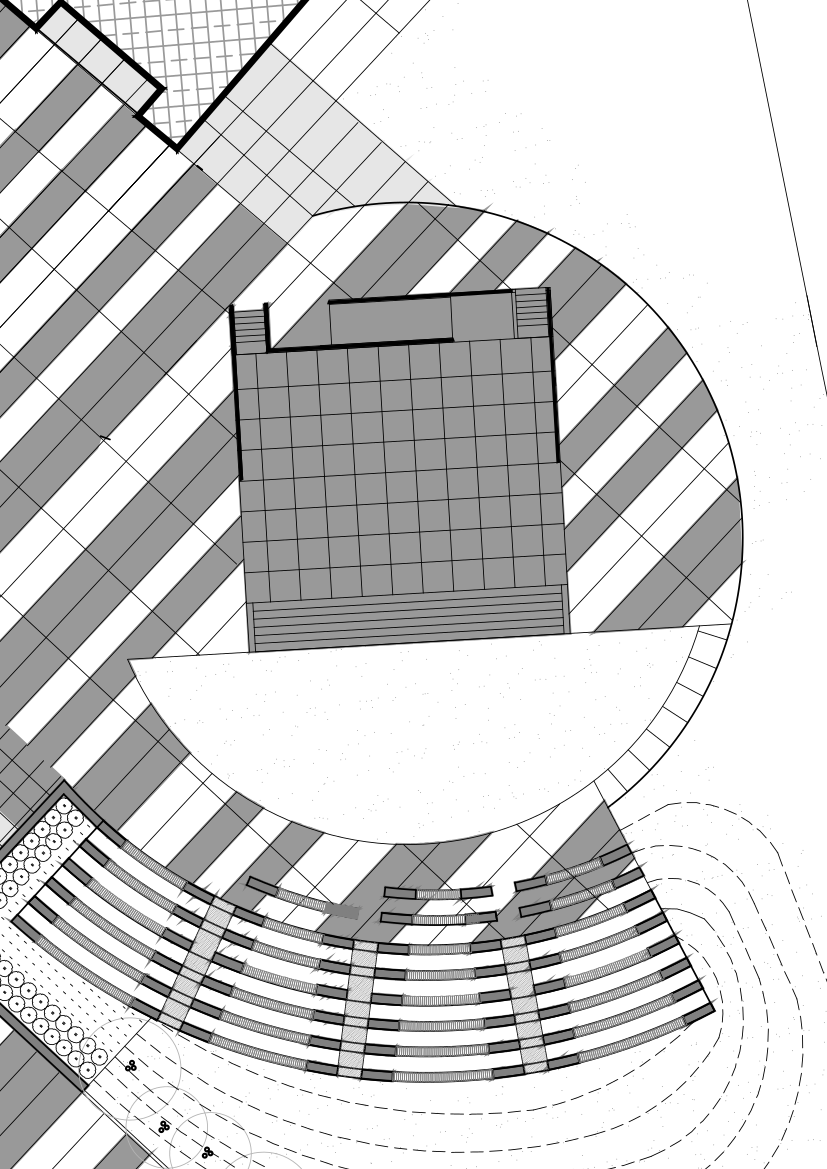

Stage Plot.png

BMO Amphitheatre

Dimensions

Stage Platform: 55’x40’

  • On diagram, each full square is 5 feet

  • Each stair is 1’ 3”

Capacity

Seating Area: 700
Front stage grass: 100

Lighting
4x - Ephesus Prism RGP
4x - White flood lights

Power & Other

  • Multiple 15amp Power on all sides of stage deck

  • 30amp power in audience seating

  • 2x cat6 lines from back of stage to audience seating for digital sound systems

  • 2x large empty conduits run from rear of stage, for client

Enbridge Plaza

Dimensions

Plaza: 200’x100’
(Not including adjacent spaces)

Capacity

3000-5000+

Lighting
4x - Area pole lights (Can not be turned off)

Power

  • 3x - 100 Amp -> Can breakout into 15/30/50 amps as needed. (Located at light poles)

  • 1x - 30 Amp Circuit near TransAlta’s front entrance

  • Multiple 15amp Circuits on the sides of TransAlta & Doherty Hall

Misc:

  • Hose bibs for water are on the side of TransAlta

BURNCO Courtyard

Dimensions

35’x35’

Power & Other

  • 15amp circuits on Doherty Hall exterior
